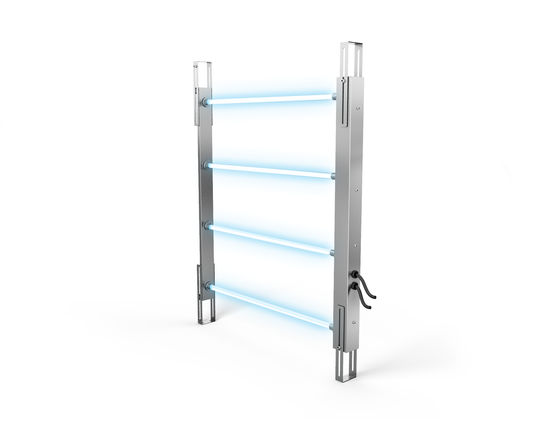

KLR 2 – 4
Air disinfection rack

The KLR Rack is used to sterilize the air flow in large or very large central air conditioning- and ventilation systems. Microorganisms formed in the ventilation system or brought in through outdoor air can be eliminated using the KL Rack.

Applications:
  • Ventilation housing
  • Ventilation
Function:
  • KL is suitable for large to very large ventilation systems (up to 200,000m³/h); can be integrated into existing work processes/ventilation systems; supports the hygiene specifications of VDI directive 6022; low pressure loss
Equipment:
  • Assembly unit ready to install; functional and control electronics mounted outside of the module in an external switch cabinet
Assembly/maintenance:
  • Easy installation with adjustable assembly angle; can be integrated into existing work processes/ventilation systems
Options:
  • Available with ozone emitters for additional odor neutralization; LED indicator for functional controlling

Technical Data

  • Dimennsions in mm L x B x H: 295 – 1595 × 65 × 460 (50±)
  • Housing material: V2A stainless steel
  • Emitter ST1: 2x UV-C high efficiency / 16.000 h
  • Power in W: 80
  • Voltage: 230V ± 10% (50 - 60 Hz)
  • Connection cable in m: 3 / 6 / 10
  • Weight in kg: 2.5
  • Protection class: IP 54
  • Dimennsions in mm L x B x H: 295 – 1595 × 65 × 460 (50±)
  • Housing material: V2A stainless steel
  • Emitter ST1: 3x UV-C high efficiency / 16.000 h
  • Power in W: 120
  • Voltage: 230V ± 10% (50 - 60 Hz)
  • Connection cable in m: 3 / 6 / 10
  • Weight in kg: 3.6
  • Protection class: IP 54
  • Dimennsions in mm L x B x H: 295 – 1595 × 65 × 860 (50±)
  • Housing material: V2A stainless steel
  • Emitter ST1: 4x UV-C high efficiency / 16.000 h
  • Power in W: 160
  • Voltage: 230V ± 10% (50 - 60 Hz)
  • Connection cable in m: 3 / 6 / 10
  • Weight in kg: 4.6
  • Protection class: IP 54
