Medical Grade Adhesives
Hoenle adhesives are specially formulated to address the specific challenges of medical device manufacturing. In addition to being compliant with health standards, these materials are ideal for high-precision manufacturing and permanent joining. They are also resistant to various sterilisation methods. We are a trusted supplier of a wide range of biocompatible CMR- & TPO-free adhesives, all of which are certified according to USP CLASS VI and/or ISO 10993 standards.
Medical Grade Adhesives For many Medical Devices

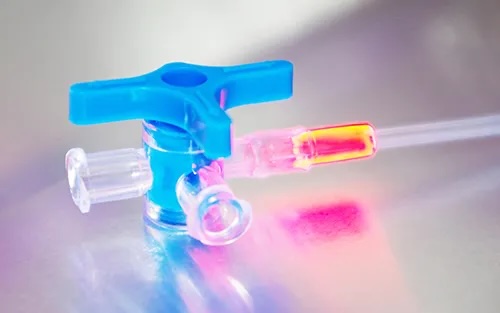

Medical grade adhesives from Hoenle Adhesives (formerly Panacol) can be used to bond medical products, such as syringes, dialysis filters, blood bags and tube connections. These medical products are usually made from a range of synthetic materials, including plastics that are hard to bond, such as PEEK, PE and PP. Common plastics such as PVC and ABS, on the other hand, are well suited to bonding.

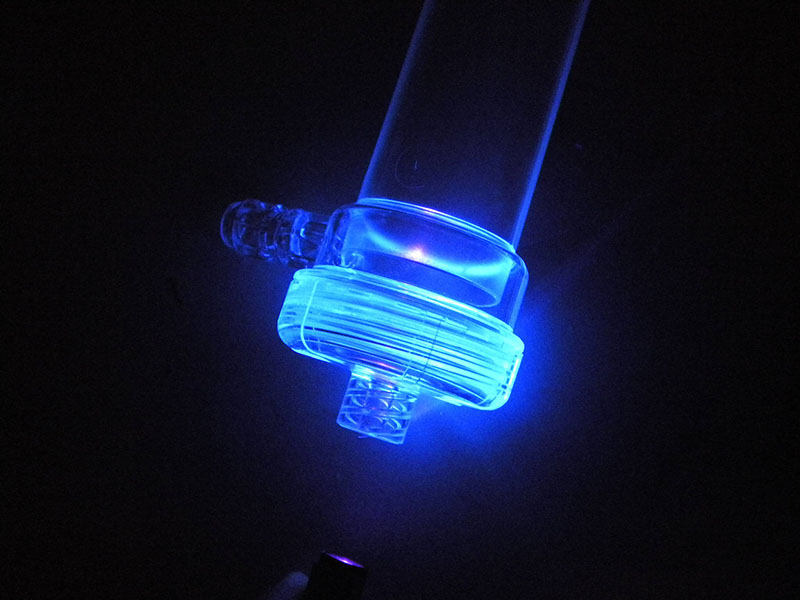

Disposable medical products are often produced in large quantities. In addition to their mechanical bond strength, rapid curing of the adhesives used is important to allow high volume production. For transparent and UV-permeable materials, UV-curing medical grade adhesive can be used. For UV-impermeable substrates we recommend LED curing. For visual quality inspection, fluorescent versions of our medical grade adhesives are also available.
For reusable medical products, durability and the ability to withstand frequent sterilization play a vital role. Cured acrylate adhesives have a high resistance to sterilization by autoclaving, gamma radiation and ETO. These methods have no measurable negative impact on Hoenle’s medical grade adhesives. Electron-beam sterilization has even been shown to improve the adhesion of some medical grade adhesives of the Vitralit® series. This is due to an increase in the degree of polymerization of these products.
Medical disposables are easily bonded with uv adhesives
Overview of our Medical Grade Adhesives
The table below provides an overview of medical grade adhesives that are certified to ISO 10993 and/or USP Class VI and therefore suitable for medical applications:
| Adhesive | Applications for Medical Devices | Viscosity [mPas] | Base | Curing | Special Properties |
|---|---|---|---|---|---|
|
1,300-1,800 (Brookfield LVT, 25 °C, Sp. 3/60 rpm) | cyanoacrylate | moisture, room temperature |
|
|
|
30-50 | cyanoacrylate | moisture, room temperature |
|
|
|
400 (LVT, 25 °C, Sp. 2/60 rpm) | cyanoacrylate | atmospheric moisture / room temperature |
|
|
|
230-350 (LVT, 25 °C, Sp. 2/60 rpm) | cyanoacrylate | moisture, room temperature |
|
|
|
paste-like | 2-component epoxy | thermal |
|
|
|
6,000-10,000 (Rheometer, 25°C, 10s^-1) | epoxy | thermal |
|
|
|
3,000-5,000 | 2-part epoxy | thermal |
|
|
|
30,000-45,000 (LVT, 25°C, Sp. 4/6 rpm) | epoxy | thermal |
|
|
|
200-400 (LVT, 25°C, Sp. 2/30 rpm) | epoxy | UV secondary heat cure |
|
|
|
3,500-7,000 (Rheometer, 25 °C, 10s^-1) | epoxy | UV secondary heat cure |
|
|
|
150-300 (Brookfield LVT, 25 °C, Sp. 2/30 rpm) | epoxy | UV secondary heat cure |
|
|
|
10-100 | acrylate | UV |
|
|
|
85,000-130,000 (LVT, 25 °C, Sp. 4/3 rpm) | acrylate | UV |
|
|
|
900-1,500 (LVT, 25°C, Sp. 3/30 rpm) | acrylate | UV VIS |
|
|
|
500 - 800 (Brookfield LVT, 25 °C, Sp. 3/30 rpm) | acrylate | UV VIS secondary heat cure |
|
|
|
3,000-6,000 (Rheometer, 25 °C, 10s^-1) | acrylate | UV VIS secondary heat cure |
|
|
|
40-100 | acrylate | UV VIS |
|
|
|
3,000-5,000 | acrylate | UV |
|
|
|
700-1,400 (LVT, 25°C, Sp. 3/30 rpm) | acrylate | UV VIS |
|
|
|
900-1,200 (Rheometer, 25 °C, 10s^-1) | acrylate | UV/VIS |
|
|
|
2,100 (Rheometer, 25°C) | acrylate | UV VIS |
|
|
|
70 (Rheometer, 25°C) | acrylate | UV VIS |
|
|
|
70 (Rheometer, 25°C) | acrylate | UV VIS |
|
|
|
2,200 (Rheometer, 25°C, 10s^-1) | acrylate | UV VIS |
|
|
|
2,100 (Rheometer, 25°C, 10 s^-1) | acrylate | UV/VIS |
|
|
|
80 (Kinexus Rheometer, 25°C) | Acrylat | UV/VIS |
|
|
|
85 (Rheometer, 25°C) | acrylate | UV/VIS |
|
|
|
2,200 (Rheometer, 25 °C, 10s^-1) | Acrylate | UV/VIS |
|
|
|
8,000-15,000 (Rheometer, 25 °C, 10s^-1) | acrylate | UV VIS |
|
|
|
20,000 – 24,000 (Rheometer, 25 °C, 10s^-1) | acrylate | UV/VIS |
|
|
|
170 (Rheometer, 25°C) | acrylate | UV VIS |
|
|
|
720 (Rheometer, 25°C) | acrylate | UV/VIS |
|
*UV = 320 – 390 nm VIS = 405 nm

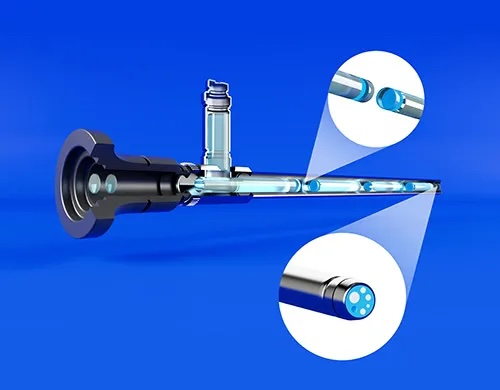

Variety of bonding applications in the medical device industry
Our Bonding and Curing System Solutions
Hoenle provides complete adhesive bonding solutions for optimal production efficiency and productivity. Pairing Hoenle UV Medical grade adhesives with the appropriate Hoenle UV or LED curing system ensures that the adhesives are thoroughly cured in the shortest possible cycle time. Hoenle curing equipment offers a full range of curing wavelengths, adjustable intensities, and is cleanroom compatible. The equipment is programmable with full monitoring capability to maintain the highest level of process control.
