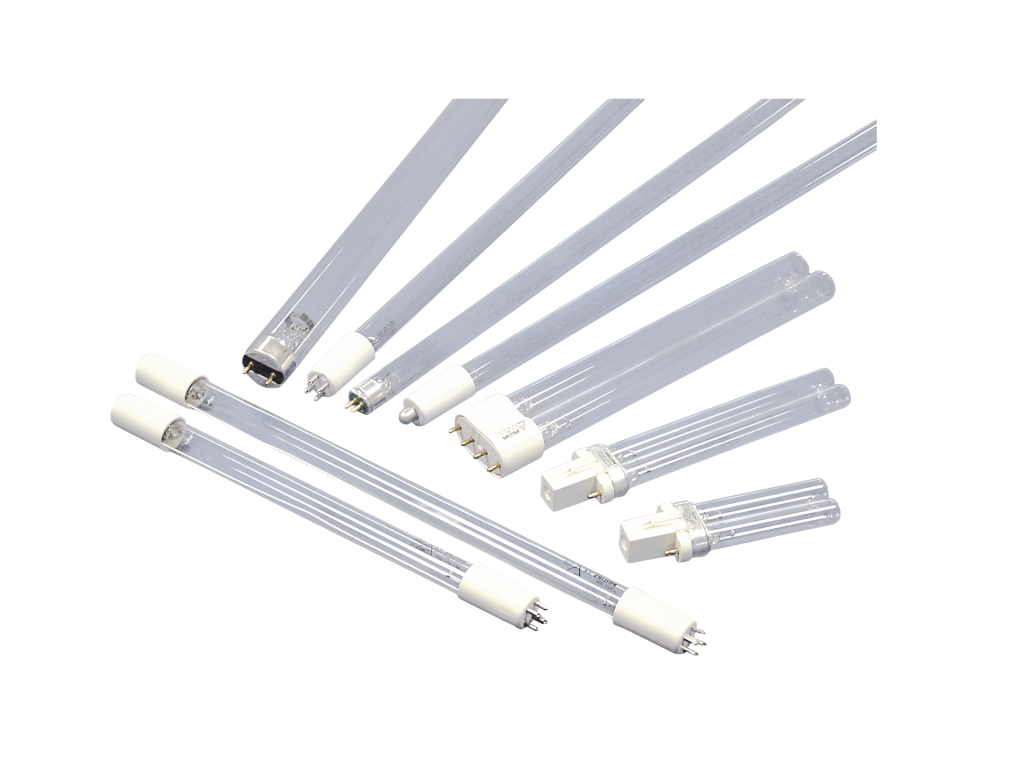

TUV-Lamps Signify UVC Lamps for Disinfection Systems

Highly efficient Signify (Philips) UV lamps for air, water and surface disinfection, covering a wide performance range for standard system integration.

• 4W to 335W, lengths up to 1,554mm
• mostly 254nm, with UVA variants for special applications
• Long-Life coating for extended output stability

System integrators need a broad, proven lamp range to match specific power and length requirements without custom engineering for every project.

TUV lamps from Signify (Philips) cover exactly this range, from 4W to 335W and lengths up to 1,554mm, with most models emitting at 254nm for maximum germicidal effectiveness. Advanced quartz glass technology blocks the 185nm line to prevent unwanted ozone formation, with optional quartz variants available where controlled ozone generation is needed. A Long-Life coating maintains consistent UV output across the lamp’s operating life.

The following table presents original Signify UVC lamps. Hoenle has the expertise to convert these lamps into 4PIN single-ended versions or customize them with any special cable or plug connector.

The following table lists original Signify UVC PL-L lamps. These long compact germicidal lamps generate UV-C radiation at 253.7 nm and are available in different wattages and base types. Hoenle supplies these lamps with matching electronic power supplies and provides guidance to help you choose the right option for your system.

The following table presents original Signify UVC PL-S lamps. These compact germicidal lamps emit short-wave UV-C at about 253.7 nm and include both 2-pin and 4-pin versions. Hoenle offers these lamps and accompanying electronic power supplies and advises you on the best solution for your specific system.

Signify electronic ballasts HF-M, HF-M Blue, HF-M Red and HF-P ensure reliable operation of UVC lamps. Hoenle supplies these units and advises on the best fit for your system.
