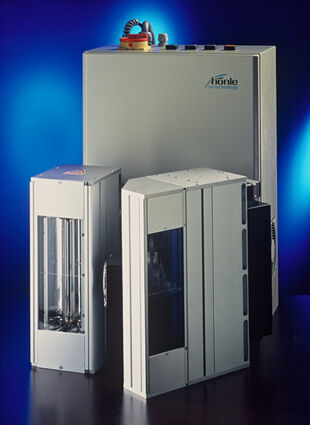

UVAPRINT HPV - UV Curing System

Compact UV high performance equipment with integrated
fan for small areas and narrow-web applications from
100 to 200 mm

  • Arc lengths of 100, 150 and 200 mm available
  • Compact integration dimensions - ideal for retrofitting
  • CAD optimised reflector geometry for optimum UV yield
  • Optional dichroic reflectors and IR filters
  • Different lamp spectra
  • Interface for external shutter control and lamp error signal
  • Process safety guaranteed by an hours counter integrated in the ballast



  • Electromotive shutter for cycled production and downtime
  • Shutter control with output reduction of 50 % in the stand-by mode
UVAPRINT HPV - UV Curing System

Laboratory application:
Lamp unit mounted on an inert chamber

UV-Flächenstrahler | Strahlerteil auf einer Inertkammer
