Adhesives as Liquid Gasket or CIPG
Adhesives are often used in industry as liquid gaskets, so-called formed-in-place gaskets (FIPG) or cured-in-place gaskets (CIPG). Liquid-applied gaskets are particularly suitable for sealing difficult 3D geometries that cannot be reliably sealed with conventional gaskets, stamped parts or sealing tapes. Compared to silicone sealants, adhesives as liquid seals cure much faster. With adhesives, individual parts can be bonded and sealed at the same time.
Downloads
Vitralit® CIPG dispensed with Atlas Copco’s new Scheugenpflug 8000 series
CIPG dispensing solution from Hoenle and Datron with Datron’s evo 600
Reliable Sealing Performance WIth UV curable CIPGs
Liquid gaskets also have a low compression set, i.e. after being subject to pressure, they fully or partially return to their original shape and dimensions.
Cured-in-place gaskets protect sensitive electronic components against dust, moisture, aggressive media or temperature. They are used in lighting technology, the electrical and electronics industry or in the field of electromobility. Typical areas of application for CIPGs are electronic control units (ECU), cameras, sensors, on-board chargers (OBC) and switching units (e.g. BDU – Battery Disconnect Units).
Dismantling and Repair Made easy
The CIPG material is usually applied directly to the housing and then cured. In contrast to a liquid gasket (FIPG), in the CIPG process the matching housing cover is only fitted after curing. Surface pressure on the CIPG bead creates a sealing effect, which is usually reinforced by an additional force or form fit. As the sealing bead has a higher adhesion to the housing base than to the cover, even more frequent disassembly processes are possible without permanently damaging the material. After repair, housings can resealed with the CIPG still in place.
For easy dismantling and circular economy benefits, CIPGs are detachable seals that can be removed easily without residues. This allows for waste separation or resealing with a newly applied CIPG gasket.

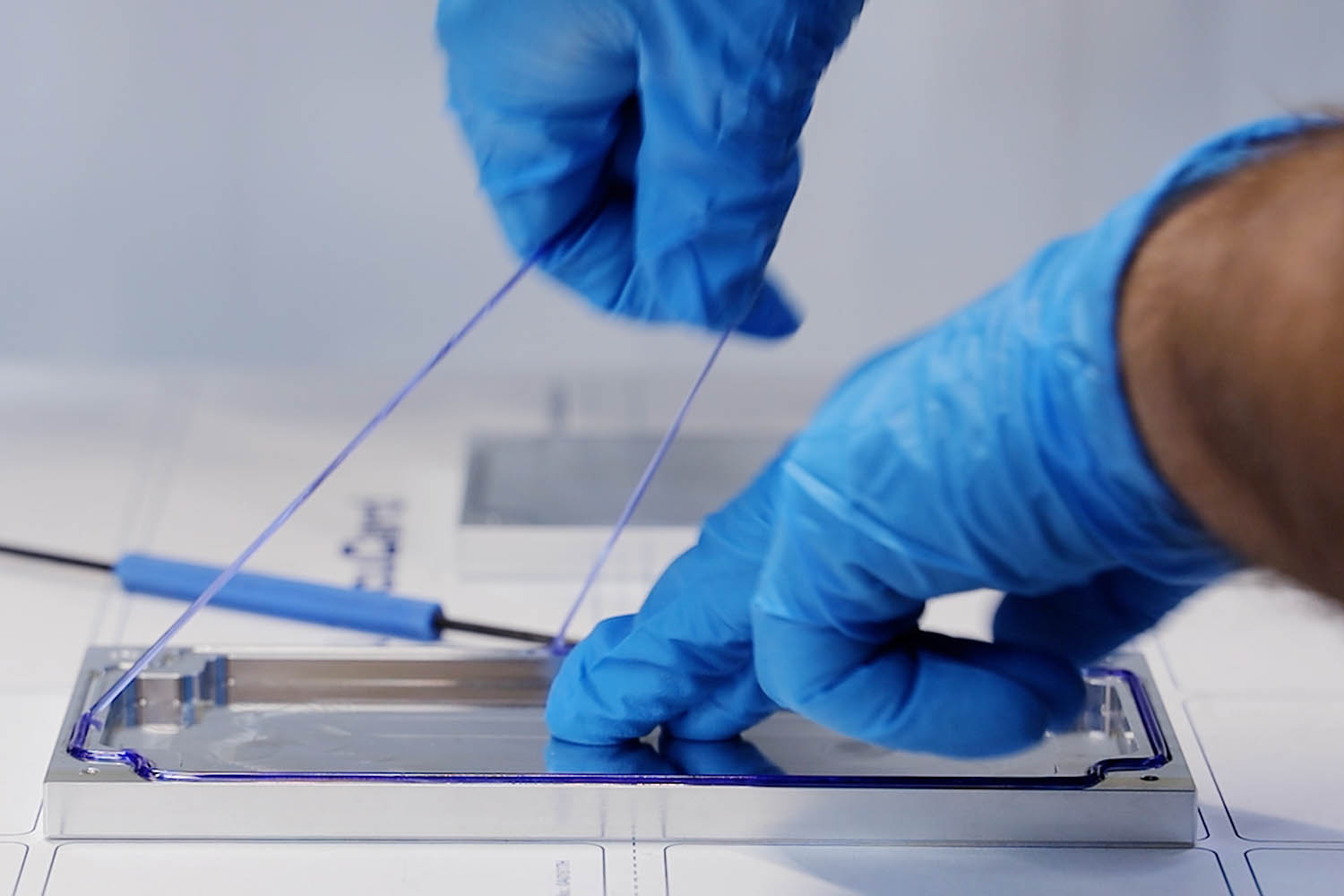

UV curable CIPGs from Hoenle can easily be removed without residue
Selection of our best Liquid Gasket CIPGs
In the following table you will find a selection of elastic adhesives that are suitable as liquid sealants or CIPG for sealing enclosures. Technical data sheets can be downloaded by clicking on the adhesive name.
| CIPG/UV Gasket | Viscosity [mPas] | Base | Curing | Special Properties |
|---|---|---|---|---|
| 5,000-10,000 (Rheometer, 25°C, 10s^-1) | acrylate | UV VIS |
|
|
| 65,000 (Rheometer, 25 °C, 10s^-1) | acrylate | UV/VIS |
|
|
| 35,000 (Rheometer, 25 °C, 10s^-1) | acrylate | UV/VIS |
|
*UV = 320 – 390 nm VIS = 405 nm
Our CIPG System Solutions
Hoenle provides complete adhesive bonding solutions for optimal production efficiency and productivity. Pairing Hoenle UV CIPG gasket material with the appropriate Hoenle UV or LED curing system ensures that the adhesives are thoroughly cured in the shortest possible cycle time. Hoenle curing equipment offers a full range of curing wavelengths, adjustable intensities, and is cleanroom compatible. The equipment is programmable with full monitoring capability to maintain the highest level of process control.
For dispensing, we team up with with leading manufacturers of dispensing lines. Watch some of our application examples below:
CIPG dispensing solution from Hoenle and Datron evo 600
CIPG dispensing with bdtronic in automated production line
Vitralit® CIPG dispensed with Atlas Copco’s Scheugenpflug 8000 series
Application of Vitralit® CIPG 60200 with Atlas Copco Scheugenpflug
