TEP20-Series Powerful, Reliable, CE-Compliant Control

CE-compliant electronic ballasts for medium-pressure UV lamps up to 2kW, available as cabinet or table-top units for industrial and laboratory use.

• up to 2kW output, 100-300V AC input range
• integral ignitor for gentle lamp starts
• cabinet (TEP20-S) or table-top (TEP20-T) versions

Water treatment, air purification and surface disinfection applications need ballasts that deliver stable performance in a control cabinet, while laboratories need the same reliability in a compact, flexible unit for research and testing.

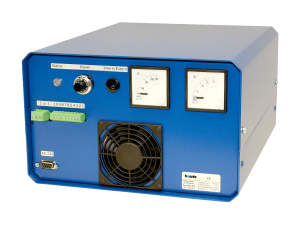

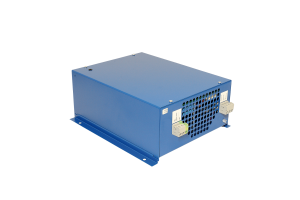

TEP20-S is a powerful, CE-compliant electronic ballast designed specifically for operating medium-pressure UV lamps. With an output capacity of up to 2kW and a wide input range of 100-300V AC, it ensures stable performance, efficient ignition and long lamp life, engineered for control cabinet installation in demanding UV applications. Its robust design guarantees reliable operation under industrial conditions, while high efficiency reduces energy consumption and operating costs. TEP20-T offers the same reliable performance as a table-top unit, designed for laboratory use in a compact and flexible setup. Both variants feature an integral ignitor for a gentle lamp start that maximizes lamp life, status monitoring via a three-coloured LED and external power adjustment from 0-10VDC.

Your Advantages

• integral ignitor
• gentle lamp start allows maximum lamp life
• for UV lamps with 100 – 300 V burning voltage
• status monitoring by a three-coloured LED
• very compact and light-weight design
• external power adjustment: 0 – 10 VDC
• in accordance to DIN VDE 0160
• ambient temperature 0-35°C
• according to EN 55011, group I, class A
