KLM-Series The Largest UVC Module for Central Air Conditioning
A robust UVC air disinfection module built for integration into central air conditioning and ventilation systems, the largest of its kind.
- Largest UVC module in its class
- 16,000h rated lamp lifespan
- Galvanized or stainless steel housing
Large-scale ventilation systems serving entire buildings need air disinfection that can handle high airflow volumes without becoming the weak point in the system.

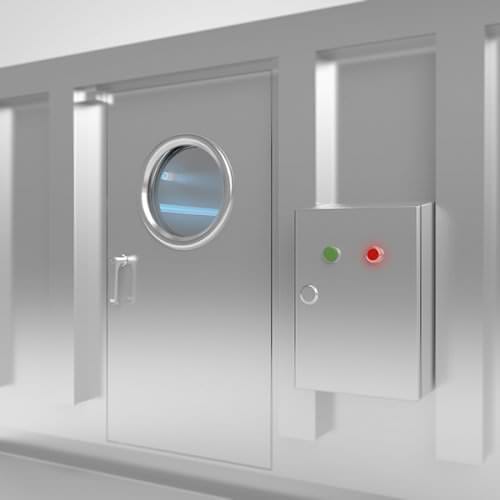

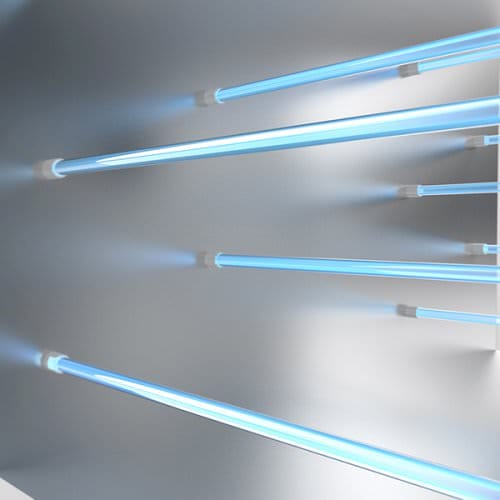

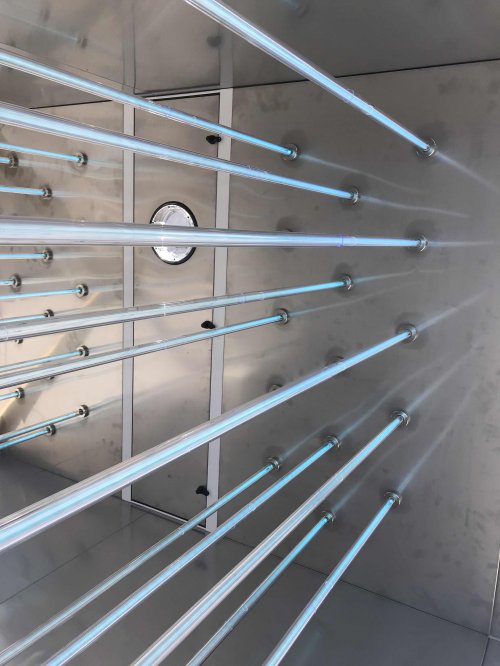

KLM-2000 is built specifically for this scale, integrating into central air conditioning and ventilation systems with a housing available in galvanized or stainless steel for durability and corrosion resistance. ST1 high-efficiency UVC lamps rated for 16,000 hours effectively inactivate airborne microorganisms, with power output scaled to match the airflow rate of the installation. Installation stays straightforward despite the module’s scale, with emitters replaceable via a simple screw-in socket.
Optional ozone emitters extend the module for odor neutralization, making KLM-2000 suitable for food industry, pharmaceutical, hospital, residential and public ventilation systems alike.
Applications
Food industry | Ventilation systems | Pharmaceutical industry | Residential ventilation systems | Hospitals | Public ventilation systems
Technical Data
| Type | KLM |
|---|---|
| Dimensions (mm) | depending on airflow rate |
| Lamp life | 16.000h |
| Power (W) | depending on airflow rate |
| Voltage | 230V ± 10% (50-60Hz) |
| Weight (kg) | depending on size |
| Protection Class | IP68 |
Looking For A Different Fit?

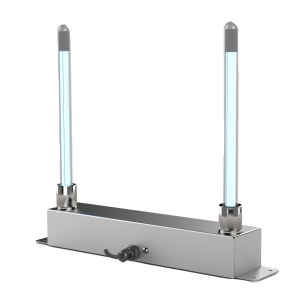

Need a smaller module for a compact ventilation duct instead? Take a look at KLS-Series.
