TR-Series Sealed UVC Disinfection for Air and Water in Moist Environments
A versatile, IP68-rated waterproof UVC system for disinfecting air and water in humid or challenging conditions, integrated via a customized flange system.
- IP68-rated, fully sealed housing
- Works in ventilation ducts or water tanks
- 11 sizes from TR200 to TR1800
Environments where air and water disinfection needs overlap, ventilation ducts exposed to moisture, water tanks, process water in humid production areas, put standard UVC equipment at risk of water ingress and premature failure.

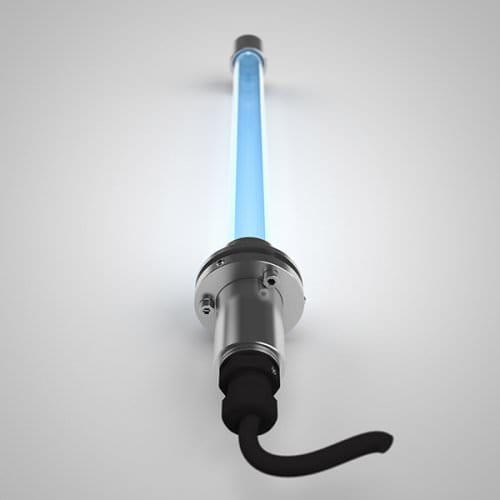

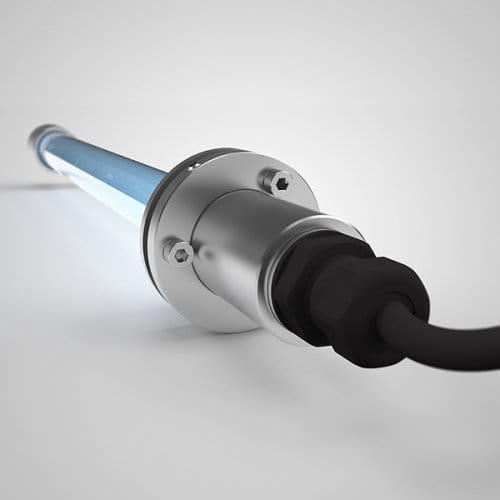

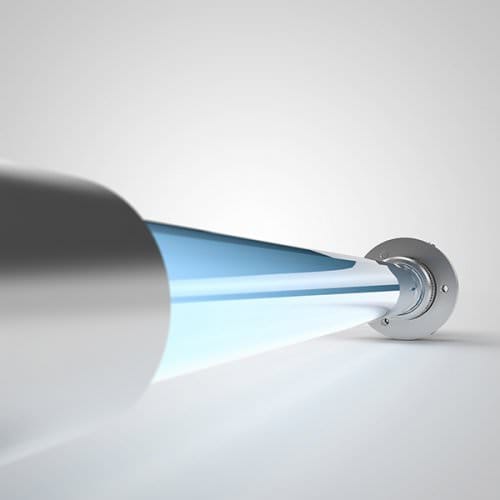

TR-Series is built specifically for these conditions. Its sealed, waterproof IP68-rated stainless steel housing withstands humid and challenging operating environments without compromising performance, while a high-efficiency UVC lamp delivers up to 16,000 hours of chemical-free disinfection. The unit integrates into ventilation ducts, wall panels or water tanks via a customized flange system, adapting to OEM machinery and system construction rather than requiring a fixed installation format.
Maintenance stays practical despite the sealed design: lamps replace easily via a screw-in socket, and optional LED function indicators add an extra layer of monitoring and safety.
Application
Ventilation housing | Ventilation ducts | Water tanks | Process water | OEM machinery and system construction
Technical Data
| Type | Dimensions (mm) | Power (W) | Voltage |
|---|---|---|---|
| TR200 | D30 x L250 | 7 | 230V ± 10% (50 – 60Hz) |
| TR300 | D30 x L350 | 13 | 230V ± 10% (50 – 60Hz) |
| TR400 | D30 x L450 | 18 | 230V ± 10% (50 – 60Hz) |
| TR500 | D30 x L450 | 23 | 230V ± 10% (50 – 60Hz) |
| TR600 | D30 x L650 | 29 | 230V ± 10% (50 – 60Hz) |
| TR700 | D30 x L750 | 35 | 230V ± 10% (50 – 60Hz) |
| TR810 | D30 x L860 | 40 | 230V ± 10% (50 – 60Hz) |
| TR1000 | D30 x L1050 | 50 | 230V ± 10% (50 – 60Hz) |
| TR1200 | D30 x L1250 | 61 | 230V ± 10% (50 – 60Hz) |
| TR1500 | D30 x L1550 | 77 | 230V ± 10% (50 – 60Hz) |
| TR1800 | D30 x L1850 | 92 | 230V ± 10% (50 – 60Hz) |
Looking For A Different Fit?
Need a compact unit for low-airflow rooms instead? Take a look at ULE1000.
