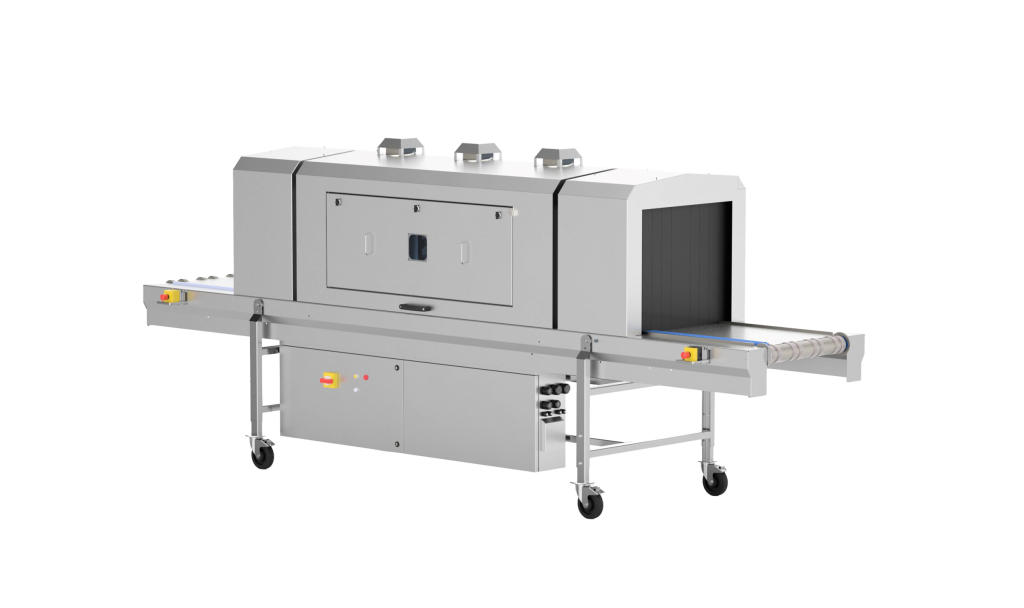

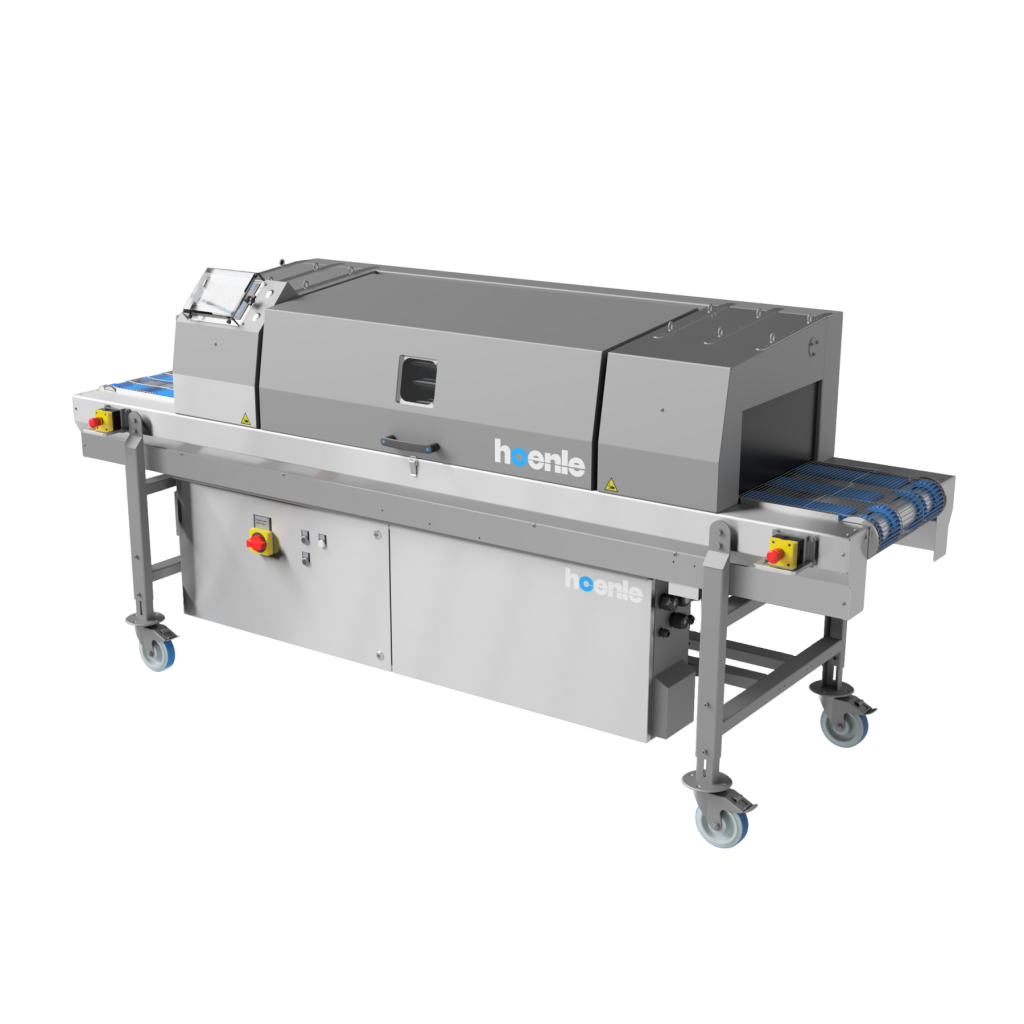

DE 360° Disinfection Tunnel Continuous Pass-Through UVC Disinfection
Custom-built tunnels for 360° surface disinfection on conveyor lines — completely dry, chemical-free, and engineered to your production requirements.
- 360° coverage, no chemicals or heat
- Custom-engineered dimensions and power
- V2A stainless steel housing
Products moving along conveyor belts: cans, sausage packaging, food and packaging items need consistent, all-around disinfection without interrupting the production flow.
The DE tunnel uses high-performance (HPF) UVC technology for reliable 360° disinfection as products pass through. It integrates directly into existing lines and can also transport goods safely into cleanrooms. Because every line is different, dimensions, UVC power and insertion height are engineered individually for each customer.
Applications
Packaging lines | Transport containers | Pharmaceutical industry | Food production | Slicer lines | Locks
Technical Data
| Type | DE |
|---|---|
| Dimensions | adaptable depending on required capacity |
| Housing Material | V2A stainless steel |
| Emitter ST1 | UV-C high efficiency / 12.000h |
| Power in W | 500-2000 |
| Voltage | 230/400V 50Hz |
| Connection Cable in m | 6 |
| Weight in kg | depending on machine size |
| Insertion Height in mm | 1000+/-150 |
MKD Blade Basket Disinfection
For continuous disinfection of blade baskets, knives and safety equipment in meat processing and cutting rooms – where the DE’s conveyor format doesn’t fit.
Applications
Food production | Meat processing companies | Butchers | Hygiene locks in cutting rooms | Laboratories
Technical Data
| Type | MKD |
|---|---|
| Dimensions in mm | Machine adaptable depending on required capacity |
| Power in W | 900 |
| Voltage | 400V 50Hz |
| Weight in kg | Depending on machine size |
UV Measurement equipment
Precise UV measurement is essential. Only those who keep an eye on UV performance can operate a system optimally. Handheld measuring devices provide reliable real-time data directly on site, giving you full control, maximum efficiency and preventive maintenance.
Devices are available for dose measurement, intensity measurement or both and mobile spectrometers enable immediate on-site testing. Reliable and UV-stable in every application, these instruments ensure accurate monitoring under all conditions. Custom configurations are standard, allowing every device to be tailored to the specific needs of your system.
Looking For A Different Fit?
Need standard chamber-based disinfection instead of an in-line tunnel? Take a look at UVC Disinfection Chambers.
Contact And Support
Not sure which product fits your line?
With a portfolio this broad, a short conversation gets you to the right solution faster than browsing specs alone. Our team will help you find the right solution for your specific application.
