DS400-440 Pass-Through UVC Disinfection for Continuous Item Flow
A UVC sanitizer box built for pass-through use, disinfecting small units like parcels, letters, menus and tools as they move between areas.
- Pass-through design for continuous flow
- Preset disinfection duration
- Stainless steel housing with viewing flaps
When items need to move continuously from one area to another, not just get disinfected in a single batch, a standard closed cabinet creates a bottleneck.
DS400 and DS440 are built as a pass-through unit: items enter, are exposed to UV-C light triggering a photochemical reaction that kills or damages bacteria, viruses, yeasts and molds and exit disinfected. Supporting a continuous flow rather than a stop-and-start batch process. The disinfection duration is adjustable via a time relay, and viewing flaps let operators monitor the process safely without direct UV-C exposure.
A safety switch shuts the lamps off automatically if the unit is opened during operation, keeping the process safe even with frequent access.
Applications
Packages | letters | tools | knife | cruet | menu
Technical Data
| Type | Dimensions ext. (mm) | Dimensions int. (mm) | Power in W | Voltage |
|---|---|---|---|---|
| DS400 | 425 x 500 x 490 | 300 x 495 x 395 | 40 | 230 V ± 10% (50 -60 Hz) |
| DS440 | 425 x 615 x 495 | 315 x 538 x 390 | 80 | 230 V ± 10% (50 -60 Hz) |
Looking For A Different Fit?

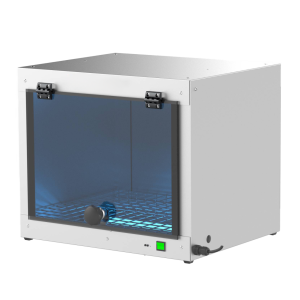

Need a simpler single-flap batch cabinet instead of pass-through flow? Take a look at DS410 Disinfection Cabinet.
