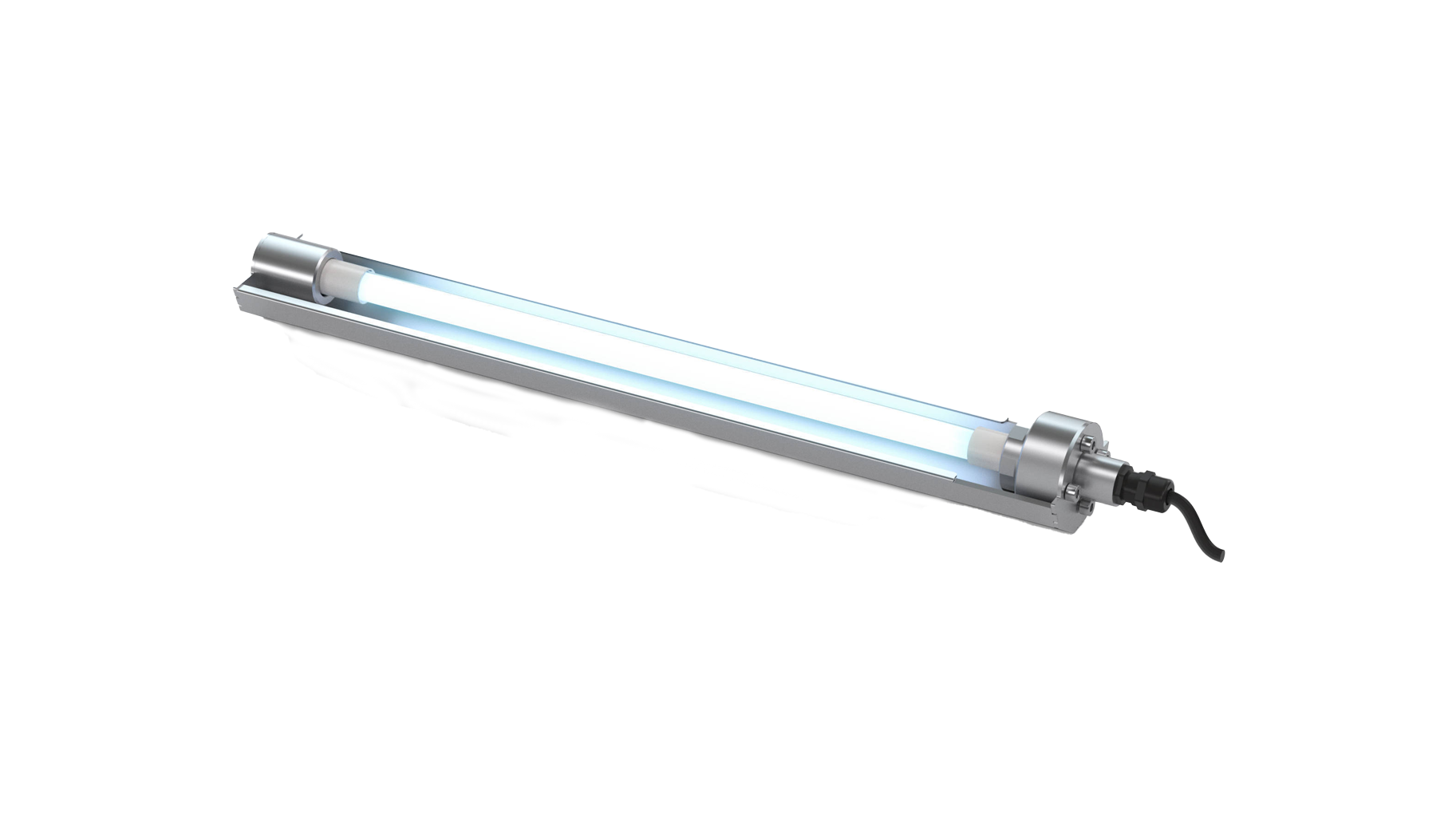

FR-Series HPF Reflector Modules for Heavily Contaminated Surfaces
High-performance reflector technology reaches microorganisms that standard UVC solutions can’t – for the toughest contamination challenges.
- HPF reflector for maximum UV-C efficiency
- 9 sizes from FR300 to FR1500
- For OEM integration into machines and lines
Standard UVC modules can struggle with heavily contaminated surfaces. The light output simply isn’t concentrated enough to reach every microorganism reliably.
FR-Series modules pair UVC emitters with a high-performance (HPF) reflector, concentrating radiation precisely where it’s needed. This maximizes microbial inactivation even under demanding production conditions, without increasing energy consumption. Nine sizes cover conveyor systems, packaging lines, proofing cabinets and OEM machine building, so the module length can match your exact application.
Applications
Laboratories | Pharmaceutical industry | Drink industry |Food production | Packaging lines | Screen systems | Conveyor systems | Proofing cabinets / systems | OEM machine and equipment building
Technical Data
| Type | Dimensions in mm | Power in W | Voltage |
|---|---|---|---|
| FR 300 | 342 x 64 x 54 | 13 | 230V ± 10% (50 – 60Hz) |
| FR 400 | 442 x 64 x 54 | 18 | 230V ± 10% (50 – 60Hz) |
| FR 500 | 542 x 64 x 54 | 23 | 230V ± 10% (50 – 60Hz) |
| FR 600 | 642 x 64 x 54 | 29 | 230V ± 10% (50 – 60Hz) |
| FR 700 | 742 x 64 x 54 | 35 | 230V ± 10% (50 – 60Hz) |
| FR 810 | 852 x 64 x 54 | 40 | 230V ± 10% (50 – 60Hz) |
| FR 1000 | 1042 x 64 x 54 | 50 | 230V ± 10% (50 – 60Hz) |
| FR 1200 | 1242 x 64 x 54 | 61 | 230V ± 10% (50 – 60Hz) |
| FR 1500 | 1542 x 64 x 54 | 77 | 230V ± 10% (50 – 60Hz) |
Looking For A Different Fit?

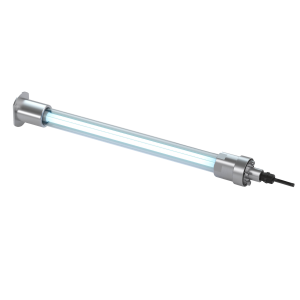

Need a fully waterproof, stainless steel design for washdown environments? Take a look at FS32-Series.
Contact And Support
Not sure which module fits your line?
With a portfolio this broad, a short conversation gets you to the right solution faster than browsing specs alone. Our team will help you find the right solution for your specific application.
