FS32-Series Fully Stainless Steel UVC Modules, IP69K Rated
Built entirely in stainless steel for the most demanding hygiene environments — where high-pressure washdown and constant cleaning are part of daily operation.
- IP69K rated, full stainless steel
- Splinter-protected tubes
- Plug-and-play, 3m cable, on-site emitter replacement
Some environments, pharmaceutical facilities, beverage production or sensitive food processing, go beyond standard washdown resistance and require equipment that survives high-pressure, high-temperature cleaning cycles without degrading.
FS32 modules are constructed entirely in stainless steel with an IP69K rating, the highest standard for protection against high-pressure and steam-jet cleaning. Splinter-protected tubes add durability during cleaning and handling. Pre-switch electronics sit in a separate control cabinet, with LED indicators and remote signaling contacts for quick function checks and seamless integration into industrial process monitoring.
Installation is plug-and-play with 3-meter cables, and emitters can be replaced directly on-site. No need to send the unit out for service.
Applications
Packaging lines | Food production | Pharmaceutical industry | Drink industry | Screen systems | OEM machine and system construction | Laboratories
Technical Data
| Type | Dimensions (mm) | Power (W) | Voltage |
|---|---|---|---|
| FS32 200 | D62 x L242 | 7 | 230V ± 10% (50 – 60Hz) |
| FS32 300 | D62 x L342 | 13 | 230V ± 10% (50 – 60Hz) |
| FS32 400 | D62 x L442 | 18 | 230V ± 10% (50 – 60Hz) |
| FS32 500 | D62 x L542 | 23 | 230V ± 10% (50 – 60Hz) |
| FS32 600 | D62 x L642 | 29 | 230V ± 10% (50 – 60Hz) |
| FS32 700 | D62 x L742 | 35 | 230V ± 10% (50 – 60Hz) |
| FS32 810 | D62 x L852 | 40 | 230V ± 10% (50 – 60Hz) |
| FS32 1000 | D62 x L1042 | 50 | 230V ± 10% (50 – 60Hz) |
| FS32 1200 | D62 x L1242 | 61 | 230V ± 10% (50 – 60Hz) |
| FS32 1500 | D62 x L1542 | 77 | 230V ± 10% (50 – 60Hz) |
| FS32 1800 | D62 x L1842 | 92 | 230V ± 10% (50 – 60Hz) |
Looking For A Different Fit?

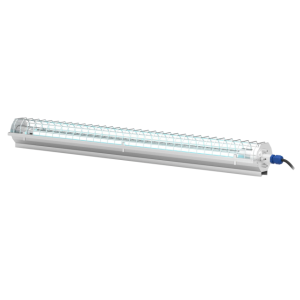

Need explosion protection for hazardous areas instead? Take a look at FSX-Series ATEX.
Contact And Support
Not sure which module fits your line?
With a portfolio this broad, a short conversation gets you to the right solution faster than browsing specs alone. Our team will help you find the right solution for your specific application.
