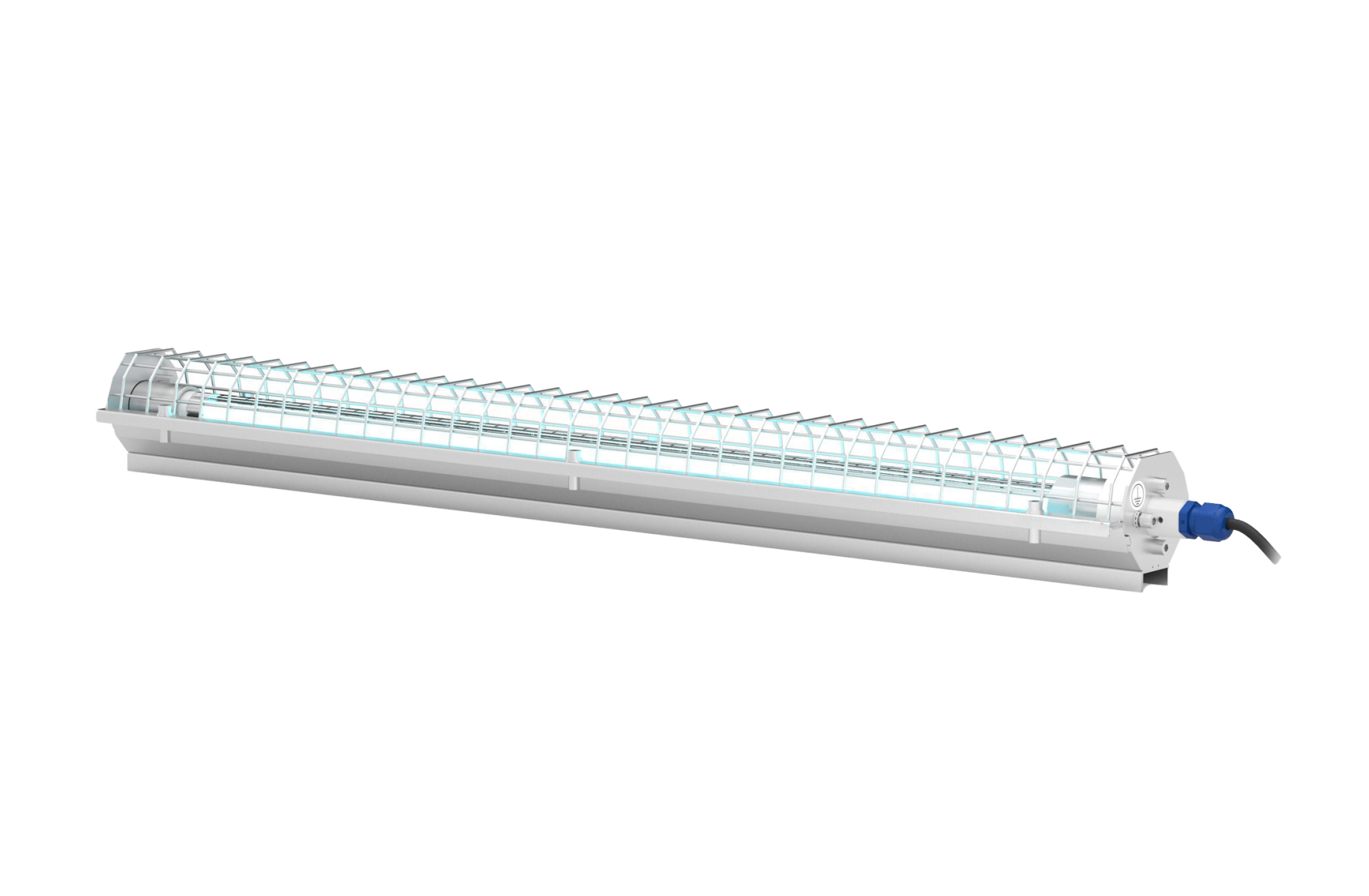

FSX-Series ATEX UVC Disinfection for Hazardous Areas
Explosion-protected UVC surface disinfection for facilities where standard equipment isn’t rated for the environment.
- ATEX certified for hazardous areas
- Shatterproof lamp protection
- Customizable to specific site requirements
Facilities with explosive atmospheres, certain food processing, pharmaceutical or chemical-adjacent environments, can’t simply install standard UVC equipment, no matter how effective it is elsewhere in the plant.
FSX-Series modules are ATEX certified specifically for hazardous areas, with a robust design including shatterproof lamp protection built to the same standards as the rest of your explosion-protected equipment. It’s used across food processing, laboratories, pharmaceutical production and OEM mechanical and plant engineering wherever ATEX compliance is required.
Because hazardous-area requirements vary by site and classification, FSX systems are available in multiple specifications. If the standard configuration doesn’t quite match your zone requirements, our team can advise on adaptations.
Applications
Food processing | Laboratories | Animal farming | Pharmaceutical industry | Screen systems | OEM machine and system
Technical Data
| Type | Dimensions (mm) | Power (W) | Voltage |
|---|---|---|---|
| FS0700EX | 805 x 92 x 84 | 35 | 230V ± 10% (50 – 60Hz) |
| FS0810EX | 915 x 92 x 84 | 40 | 230V ± 10% (50 – 60Hz) |
| FS1000EX | 1105 x 92 x 84 | 50 | 230V ± 10% (50 – 60Hz) |
| FS1500EX | 1605 x 92 x 84 | 77 | 230V ± 10% (50 – 60Hz) |
| FS1800EX | 1905 x 92 x 84 | 92 | 230V ± 10% (50 – 60Hz) |
Looking For A Different Fit?
No explosion protection required? Take a look at FS32-Series for the equivalent hygienic, high-durability design without ATEX certification.
